  UC27A
USB 2.0 Interface Smart Card Reader







Brief Taiwan 1 Taiwan 2
schematic Taiwan 1 Taiwan 2
Web-shop


    First Impression


The UC27A is a highly integrated single chip USB Smart Card reader controller.
Highly integration enables the lowest BOM cost of smart card reader.
The UC27A supports multiple international standards including ISO7816 for IC card standard, PC/SC 2.0 for windows smart card standard,
Microsoft WHQL, EMV for Europay MasterCard Visa standard and USB IF CCID standard. The application of AK9563 can be generally applied to Smart Card read/write terminal devices, such as ATM, POS terminal, Public telephone, E Commerce, personal consumption on Internet, personal certification, prepay system, loyalty system…etc.

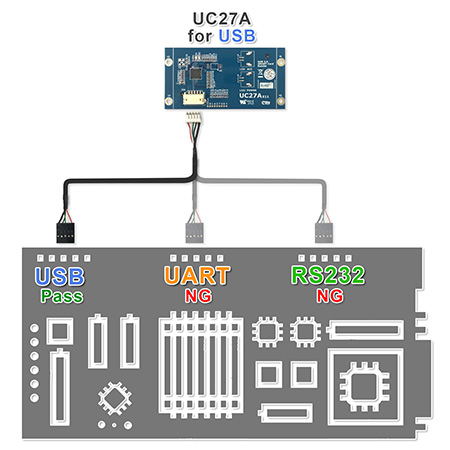

SmartCard Reader Products Compatibility Chart



        Features


  • Support Single Slot
  • Support T0, T1 Protocol
  • Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5518, SLE5528, SLE5532, SLE5536, SLE5542, SLE6636, and AT88SC102, AT88SC153, AT88SC1608, AT45D021, AT45D041 cards via external EEPROM
    (The related of software which we can not provide,it need to be deal with by your engineers.(expect of driver,not all of OS system have driver.
    If you have inquiry,please contact our sales.)
  • Support ISO7816 Class A, B and C (5V/3V/1.8V) Cards
  • Implemented as an USB full speed device with bulk transfer endpoint
  • Built in PLL for USB and Smart Card clocks requirement
  • Support EEPROM for USB descriptors customization (PID/VID/iManufacturer/iProduct/Serial Number) and accessing memory card module
  • EEPROM programmable via USB interface
  • Support software update for memory card module
  • Support short APDU and extended APDU
  • Compatible with Microsoft USB CCID inbox driver
  • Support remote wake up through inserting card/removing card
  • Support USB selective suspend
  • Support Power Saving Mode (Using one pin to select between Normal/PWR Saving Mode)
  • Support card power over current protection mechanism
  • Embedded clock source

        Standard Compliance


  • EMV4.3 Level 1 Specification Certified
  • PBOC3.0 Level 1 Certified
  • Supports USB 2.0 Full Speed, USB IF Certified
  • Based on ISO7816 implementation
  • Support PC Smart Card Industry Standard PC/SC 2.0
  • Support Microsoft Smart Card for Windows
  • Meet Microsoft WHQL Smart Card Reader requirements
  • Meet US Federal Information Processing Standards (FIPS) Publication 201 requirements on smart card reader interoperability
  • Compatible operating system
    ➢ Windows XP/2000/Vista/Win7/Win8/Win10
    ➢ Linux Redhead 9, Ubuntu 8.04, Fedora Core 9 or later version

        Dimension & Weight


  • 66mm X 33mm X 8mm  ; 13g

        Certifiction


  • RoHS

        Operating Temperature


  • 0 ~ 70℃



      Application Block Diagram


The US27A is used as USB Smart Card reader. Following is the application diagram of a typical card reader product with AK9563 by connecting the card reader to an ATM or E-Commerce. AK9563 can also be used in STB, embedded system, POS…etc.

USB Selective Suspend Feature
The driver determines whether it should enter selective suspend state by the following requirements.
The card is in power off state or there is no card in the reader.
The reader is idle at least for a given time (30 seconds by default). It means during the period there is no command issuing to reader and there is no card inserting/removing event occurs.
When the driver detects both the two requirements above are met, it starts processing the following tasks; Send standard USB command to the reader to enable remote wake function.
Start selective suspend procedure to ask the system to suspend the reader.
After entering the selective suspend state, the driver determines whether it should exit selective suspend state when one of the following conditions occurs;
There is any command which intend to communicate with the reader.
When card inserting/removing event occurs, the reader issues resume signal to the host. Then the system will inform the driver to exit selective suspend state.
