First Impression

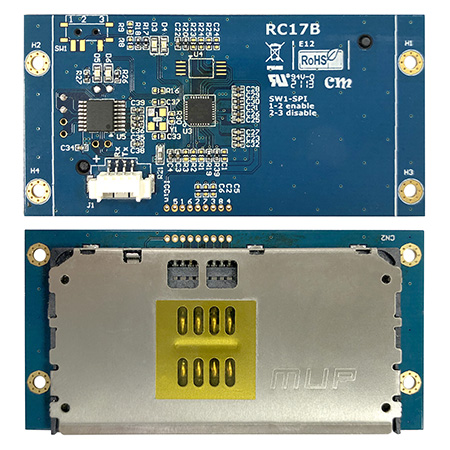

The RC17B single smart card reader module is a highly integrated single slot Smart Card reader controller which supports for UART or SPI 3-/4-wired interface to system.

RC17B can be generally applied to Smart Card read/write terminal device, such as ATM, POS terminal, Public telephone, E-Commerce, personal consumption on Internet, personal certification, prepay system, loyalty system…etc.

SmartCard Reader Products Compatibility Chart

Features

RC17B-UR:Standard UART interface
RC17B-RS:Standard RS232 interface
Support single slot
Support UART (RS232) baud rate: 4800, 9600, 19200, 38400, 115200, 230769 and 461538bps
Support SPI clock rate: 1.1M, 12M, 1.3M, 1.5M, 1.7M and 2MHz
Support up to 5 smart card slots for single UART (RS232) interface
EMVCo 4.3C Level 1 Specification certified
PBOC3.0 Level 1 Specification certified
Support PC Smart Card industry standard-PC/SC 2.0
Support ISO7816 T0, T1 protocol
Support ISO7816 Class A, B, C (5/3/1.8V) cards
Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card
(The related of software which we can not provide,it need to be deal with by your engineers.(expect of driver,not all of OS system have driver.
If you have inquiry,please contact our sales.)
Support card power over current protection mechanism
Access LED.
