   Top 20 Products

1
UN32A PCBA
Unit price: USD 65
The UN32A adapter is designed for desktop/Laptop PCs that convert 4G wireless M.2 Card to USB 3.0 port.
You can insert your M.2 card Key B (Socket 2 SSIC-base WWAN) such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to USB 3.0 port.
Standard SIM card Push connector is provided.


2
UM31A PCBA
Unit price: USD 60

The UM31A adapter is designed for desktop/Embedded system that converts 3G/4G/5G wireless Mini-Card Rev 2.1 to USB 3.1 port.
You can insert your USB type minicard such as GSM, HSPA(3.5G), GPS, LTE, 5G cards to this adapter then plug to USB port. As standard SIM card is provided, you can connect to network carrier with SIM card.


3
M2MP1-A
Unit price: USD 50
簡介 (Summary) : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
界面 (Interface):  mPCIe side: PCIe + USB
M.2 (NGFF) side : Key A Socket 1
應用 (Application) : 　Suitable for intel 7260NGW with 802.11ac WiFi & Bluetooth 4.0


4
M2MP1-E
Unit price: USD 50
簡介 (Summary) : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
界面 (Interface):  mPCIe side: PCIe + USB
M.2 (NGFF) side : Key E Socket 1
應用 (Application) : 　Suitable for intel 7260NGW with 802.11ac WiFi & Bluetooth 4.0


5

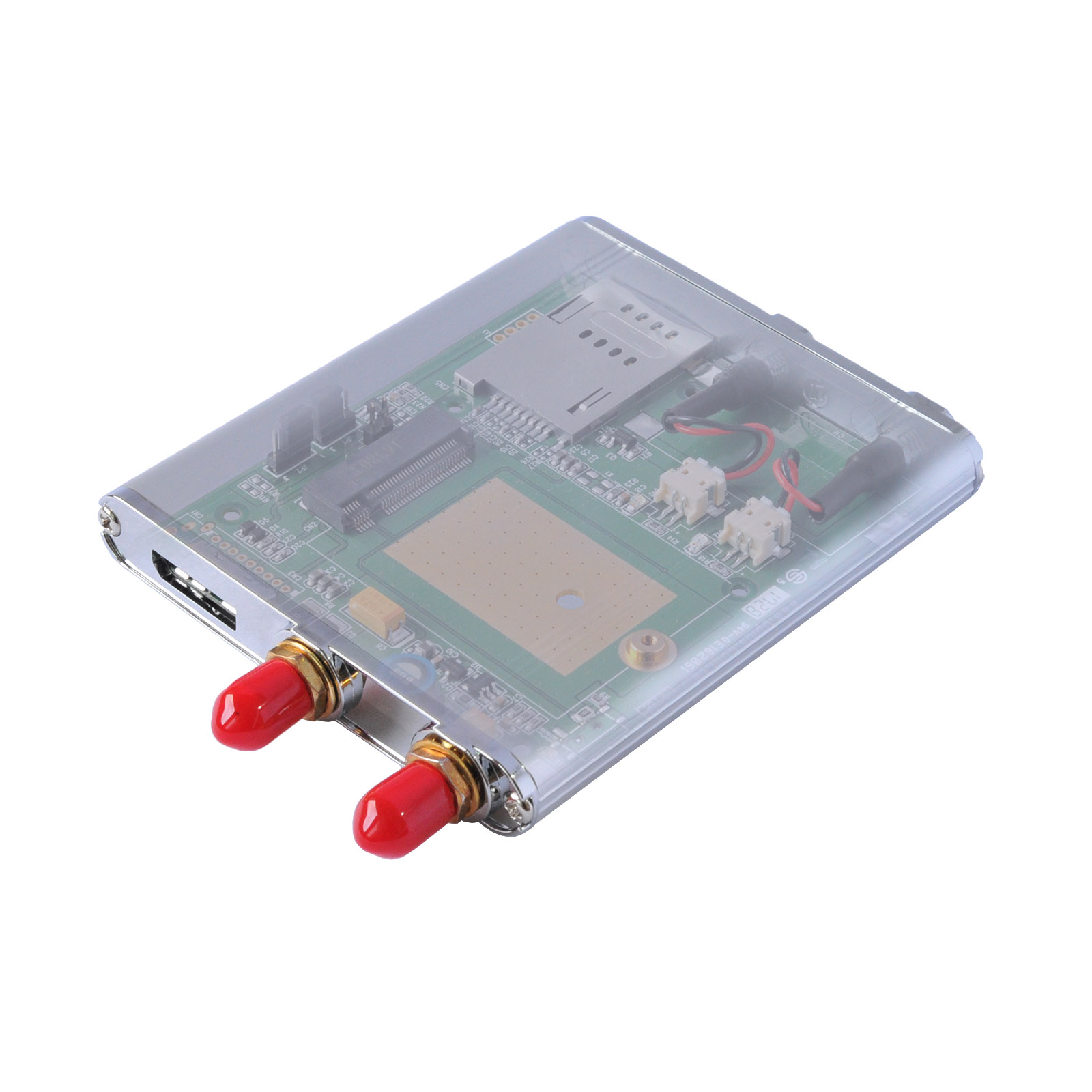

USB3M2-SMA-R Enclosure
Unit price: USD 80
The USB3M2 adapter is designed for desktop/Laptop PCs that convert 3G wireless M.2 Card to USB 3.0 port.
You can insert your M.2 card (Socket 2 SSIC-base WWAN) such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to USB 3.0 port through USB 3.0 cable.
Standard SIM card Push connector is provided.



6
USB3380EVB
Unit price: USD 220
The USB 3380 is a PCI Express Gen 2 to USB 3.0 SuperSpeed Peripheral Controller. It features one PCI Express Gen 2 x1 port and one USB 3.0 SuperSpeed client port. The USB 3380 provides a matching bandwidth at 5 GT/s between the PCI Express Gen 2 bus and the USB 3.0 SuperSpeed bus. The controller can easily add a USB 3.0 client port to an existing PCI Express system, as well as convert an existing PCI Express function (endpoint) to a USB 3.0 product. The USB 3380 can configure the PCI Express port as one x1 upstream port or one x1 downstream port. The flexibility allows different system configurations to achieve the maximum performance of the product.


7
M2BU3S-U3D
Unit price: USD 50
The M2BU3S-U3D adapter is designed for desktop/Laptop PCs that convert 5G/4G/3G wireless M.2 key B USB 3.0 module to full/half mini card Rev 2.1 slot.
You can insert your M.2 card (Socket 2 SSIC-base WWAN) such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter .



8
 M2BU3S-U2D
Unit price: USD 40
The M2BU3S-U2D adapter is designed for desktop/Laptop PCs that convert 5G/4G/3G wireless M.2 key B USB 2.0 module to full/half mini card Rev 2.1 slot.
You can insert your M.2 card (Socket 2 SSIC-base WWAN) such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter .



9
M2P2H-RPSMA V1.1
Unit price: USD 66
The PCI-E M.2 Card passive adapter is designed for wireless application on desktop PCs that convert half-size MiniCard to USB 5pin Header or standard PCI-Express 1x slot.
You can insert your USB type M.2 card to this adapter then plug to USB 5pin header port through USB cable.
Or insert your PCI-E type M.2 card into this adapter then insert to PCI-E 1x connector.



10
MP2W-RPSMA
Unit price: USD 50
The PCI-E Mini Card passive adapter is designed for wireless application on desktop PCs that convert Mini-Card to USB port or standard PCI-Express 1x slot.
You can insert your USB type minicard to this adapter then plug to USB port through USB cable.
Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector.




11
UN32B Module E11
Unit price: USD 70
The UN32B adapter is designed for desktop/Laptop PCs that convert 5G/4G/3G WWAN M.2 Socket 2 key B PCIe & USB 3.0 dual bus module to full mini card Rev 2.1 slot.
You can insert your M.2 card (Socket 2 WWAN) such as 5G,4G, LTE cards to this adapter .



12
M2MU2-S
Unit price: USD 56
The M2MU2-S adapter is designed for desktop/Laptop PCs that convert 3G wireless M.2 Card to full/half mini card slot.
You can insert your M.2 card (Socket 2 SSIC-base WWAN) such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to USB port through USB cable.



13
P22S-P22F-SIM
Unit price: USD 50
P22S-P22F-SIM mPCIe Extender is a debug and test tool. Design the FFC (Flat Flexible Cable) cable for flexible use.
Not only for Full-size MiniCard adapter but also Half-size MiniCard by removing extra Full-size extensions.
The mPCI-Eextender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers and factory tests.



14
M2MP3-E
Unit price: USD 70
名稱 (Name) : M2MP3-E
簡介 (Summary) : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
界面 (Interface):  mPCIe side: PCIe + USB
M.2 (NGFF) side :Second PCIe Lane Socket 1 , Key E
應用 (Application) :  Atheros® W0096



15
M2MP3-A
Unit price: USD 70
簡介 (Summary) : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
界面 (Interface):  mPCIe side: PCIe + USB
M.2 (NGFF) side :Second PCIe Lane Socket 1 , Key A
應用 (Application) : 　Intel® 17265 , 18260 , Atheros® W0096



16
P15S-P15F
Unit price: USD 60
The P15S-P15F adapter is designed for desktop/Laptop PCs that convert mini PCI-E cards.
You can insert your USB or PCIe-e type minicard to this adapter.. Also, WiFi& Bluetooth Combo card such as Intel® Dual Band Wireless-AC 7260 can be used for supporting both WiFi by PCIe and Bluetooth by USB at the same time.



17
 PE3B
Unit price: USD 130

This PE3B passive adapter allows you to use your existing PCI express mini-Card in the ExpressCard Standard slot
Add SIM socket for 3G minicard and add DC jack for external power source.



18
PE3A
Unit price: USD 100

PE3A is passive adapter to useexisting PCI-Express Add-in-Card or USB3.0 device in the ExpressCard2.0 Standard slot.
The ExpressCard 2.0 Standard supports the latest versions of the PCI Express and USB3.0 SuperSpeed USB specifications by offering transfer rates of up to 5Gbps. The ExpressCard 2.0 Standard supports backward compatibility with previously released products.
Edge-Free PCIe x1 connector is used for PCIex4, x8 and x16 cards.
External power input from FDD 4pin power connector is supported.
On-board switch can switchExpressCard 2.0 / 1.0 mode for USB3.0



19
SDP5250
Unit price: USD 200

The SDP5250 is a PCI Express revision 2.1 compliant card reader controller that integrates PCI Express Transceiver, regulators and memory card access units into adapter.
The SDP5250 can support Secure Digital High CapacityTM (SDHC),Secure Digital eXtended CapacityTM (SDXC).
The SDP5250 fully supports SD UHS-I(Ultra High Speed-I) and SD UHS-II (Ultra High Speed-II) FD/HD mode.
The SDP5250 integrates 3.3V to 1.8V and 3.3V to 1.2V regulators and MOSFET for card power switch and, could dramatically reduce the system BOM cost.
The SDP5250 is fully compliant to Intel Skylake 1.8V PCIe sideband signal (PERST#, CLK_REQ#,WAKE#).
Support Realtek wifi sdio module.
* Note: Qualcomm / Marvell sdio module Cannot support.



20
R33SR-050A
Unit price: USD 72

R33SR-050A is PCIe x16 Edge Connector Extension Adapter cable,
The ribbonized format of the axial cable provides a dense and flexible solution without signal attenuation for high speed PCIe Gen3 8Gbps Data Transaction, bidirectional 256Gbps (256GT/sec) for PCI x16, and 16Gpbs (16GT/sec) per PCIe lane.
