SSDMR (Dual mini-SATAto SATARAID Adapter)





Brief Taiwan 1 Taiwan 2
Dimension Taiwan 1 Taiwan 2
Schematic Taiwan 1 Taiwan 2
User Guide Taiwan 1 Taiwan 2
Buy It Now


First Impression


SSDMR adapter enables two mini-SATA SSD as a 2.5” HDD by RAID function in the laptop PC or desktop PC. Once installed, the mSATA SSD behaves like the 2.5”HDD in some RAID mode with faster or more reliable RAID functions, low power consumption, fast access time and completely shock resistant.





    Function


  • Allows user to use standard SATA-IO mSATA SSD to SATA hard drive in the Desktop or Laptop
  • RAID mode : JBOD (Port Multiplier), RAID0 (Striping/Fast), RAID1(Mirror/Safe), Span (Big)
      GUI JBOD RAID0 RAID1 Span
    SW1 X 1-2 1-2 2-3 2-3
    SW2 1-2 2-3 2-3 2-3 2-3
    SW3 X 1-2 2-3 1-2 2-3
  • Support Hi-Speed SATA3 / 6Gbps mass storage interface.
  • Transparent to the operating system and does not require any software drivers
  • Dimension: 2.5” HDD size (DxWxH : 70 x 100 x 8 mm)

    System Requirement


  • System supporting SATA 7pin data port and SATA 15pin power.



    Notice :


  • SSDMR can not be used with USB-SATA adapter.

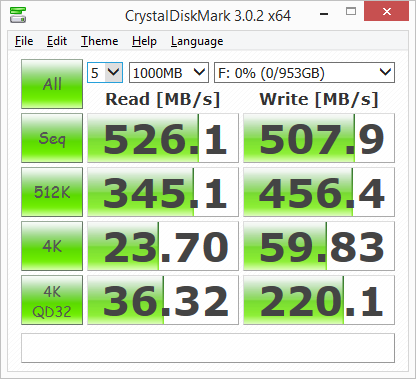

CPU: Intel(R) Core(TM) i5-3550 CPU @ 3.30GHz
Main Board: Gigabyte Z77X-UP4 TH
Main Memory : 8 Gbytes
Graphics : Intel® HD Graphics 2500
OS: Microsoft Windows 8.1 Pro 64-bit
mSATA SSD : Samsung SM841 512G x2

Package Content



SSDMR
Unit price: USD 130.
SSDMR
(Dual mini-SATAto SATA RAID Adapter) x1
Flat-Head Screw x4
