    ECSR
(Smart Card Reader)


Introduction:
ECSR smart card readers are designed for securing network access, The reader is suitable for an ExpressCard 34mm slot; Using ST7GEM chipset, handling all type of ISO7816 compatible smart cards.
As the rates of identity theft increases, more and more companies are turning to smart technology to secure their networks. E.g. home banking, network security, secure logon, email encryption, online gaming, infrastructure for logical access and protecting the privacy of on-line bank customers and web shoppers.
Installation Guide (PDF)

    Features

  • Compact and lightweight PCMCIA devices for laptop computers
  • USB Microsoft CCID
  • ExpressCard 34 format
  • Driver download



Functions

Description

Host Interface

Plug and Play ExpressCard/34, USB 2.0 full speed (12 Mbps)

SmartCard Interface

Supports ISO 7816 Class A, B and C cards (5.0 V, 3.0 V, 1.8 V)
Supports up to TA1=97 ISO7816 parameters(500 Kbps with a 4Mhz reader clock) for PC Pinpad and PC Express
Supports up to TA1=96 ISO7816 parameters(500 Kbps with a 4Mhz reader clock) for other readers
Reads from and writes to all ISO 7816-1,2,3,4 microprocessor cards, T=0 and T=1 protocols
Supports memory cards using "Synchronous Card API"
Short circuit detection

Chipset Certifications

ISO/IEC 7816-1,2,3,4: IC Cards with contacts
EMV Terminal Level 1 version 4.0
Microsoft Windows Hardware Quality Labs (WHQL), Windows Logo Program WLP 2.0
CCID - Chip Card Interface Device 1.0

Operating Systems

Windows 98, 98SE, Me, 2000, XP, Server 2003, x64 editions, Vista 32, 64 bits, Seven, Server 2008R2
Win CE 4.1, 4.2, 5.0, 6.0
Linux Kernel 2.6 and higher
Mac OS X Panther, Tiger, Leopard 32 editions
Support for Solaris, XP embedded

Environmental

CE, FCC part 15 Class B , ROHS compliant ,
Operating: +0°C / +55°C
Storage: -20°C / +65°C

Weight and size

30(g) and 85x34x5(LWHmm)

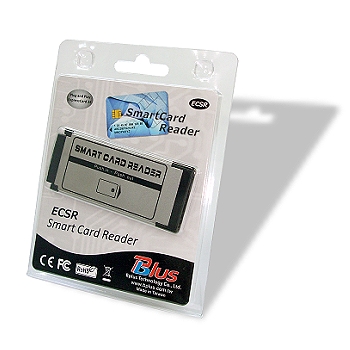

ECSR Package Contents
Unit price: US$ 35
ECSR (Smart Card Reader) x1




Documents Download
Brief (PDF):  Taiwan  Taiwan 2 Mirror  China Mirror
Schematic (PDF):   Taiwan   Taiwan 2 Mirror   China Mirror
Dimension (PDF):   Taiwan   Taiwan 2 Mirror   China Mirror
Installation Guide (PDF):   Taiwan   Taiwan 2 Mirror   China Mirror
