Home > Product > 3G/4G Wireless MODEM Adapter > U0401A

   U0401A
3G/4G Wireless USB MODEM







Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
3D model Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Web-shop


    First Impression

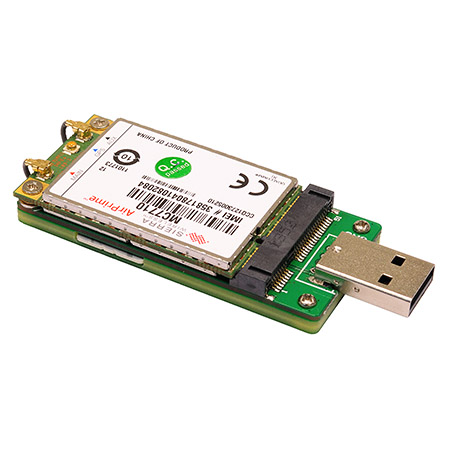

The U0401A adapter is designed for desktop/Embedded system that converts 3G/4G wireless Mini-Card to USB port.
You can insert your USB type minicard such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to USB port.

As standard SIM card is provided, you can connect to network carrier with SIM card.


        Function


  • USB A Male to desktop or notebook PC
  • Supports USB interface of Mini-Cards such as 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA MODEM, GPS, 4G WiMAX, LTE, and Mini-Card to desktop PC
  • Support SIM card connector.
  • Include Antenna by U.fl/IPX connector.
  • Antenna SPEC:
    S.W.R.
    <= 3.0 @ 780~960 MHz
    <=3.5 @ 1710~2170 MHz
    Antenna Gain :
    +2.0 ± 0.7 dBi @ 880 MHz
    +2.0 ± 0.7 dBi @ 1800 MHz



        Specifications


  • System Requirements
    USB port
    Full / Half -Mini Card dimension
  • Dimension
    80mm X 30mm X 8mm
  • Certifiction
    RoHS
  • Operating Temperature
    0 ~ 70℃





    Web-shop



U0401A
Unit price: USD 75.
U0401A
(3G/4G Wireless USB MODEM) x1
Flat-Head Screw x2




Buy Related Items


U0901A
