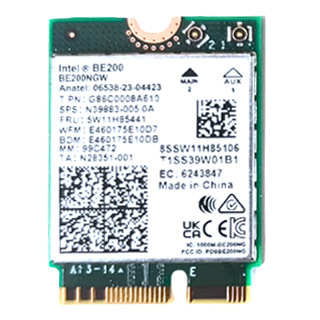

  Intel® Wi-Fi 7 BE200 Module
Tri Band, 2x2 Wi-Fi 7 + Bluetooth® 5.4

Product Name Intel® Wi-Fi 7 BE200 Module
Model Name

BE200NGW

Version M.2: Wi-Fi (PCIe), Bluetooth (USB)
Product Picture
產品圖像
製品画像
Price
價格
価格
USD 40.
Related Items
相 關 配 件
RF22008B
MHF4-RPSMA cable 8cm
US$ 3.
RF12008B
MHF4-SMA cable 8cm
US$ 3.



    Essentials

Product Collection Intel® Wi-Fi 7 Series
Weight (in grams) 2230: 3.07+/-0.15G
Operating Temperature Range
0 °C to 80 °C
Operating Temperature (Maximum) 80 °C
Operating Temperature (Minimum) 0 °C
Supported Operating Systems Windows 11*, Windows 10*, Linux*
Antenna 2x2


   Networking Specifications

TX/RX Streams 2x2, 320 MHz, 4K QAM
Bands 2.4, 5, 6 GHz
Max Speed 5.8 Gbps
Wi-Fi CERTIFIED* Expected to align with official WFA certification availability
Compliance FIPS
Bluetooth Version 5.4


    Package Specifications

Board Form Factor M.2 2230
Package Size 22mm x 30mm x 2.4mm
System Interface Type M.2: PCIe*, USB

 Advanced Technologies

MU-MIMO

Yes
Orthogonal Frequency-Division Multiple Access (OFDMA) Yes
Intel® Smart Connect Technology No
Supported Under Intel vPro® Technology Yes



All information provided is subject to change at any time, without notice. Intel may make changes to manufacturing life cycle, specifications, and product descriptions at any time, without notice. The information herein is provided "as-is" and Intel does not make any representations or warranties whatsoever regarding accuracy of the information, nor on the product features, availability, functionality, or compatibility of the products listed. Please contact system vendor for more information on specific products or systems.

Intel classifications are for general, educational and planning purposes only and consist of Export Control Classification Numbers (ECCN) and Harmonized Tariff Schedule (HTS) numbers. Any use made of Intel classifications are without recourse to Intel and shall not be construed as a representation or warranty regarding the proper ECCN or HTS. Your company as an importer and/or exporter is responsible for determining the correct classification of your transaction.

Refer to Datasheet for formal definitions of product properties and features.

‡ This feature may not be available on all computing systems. Please check with the system vendor to determine if your system delivers this feature, or reference the system specifications (motherboard, processor, chipset, power supply, HDD, graphics controller, memory, BIOS, drivers, virtual machine monitor-VMM, platform software, and/or operating system) for feature compatibility. Functionality, performance, and other benefits of this feature may vary depending on system configuration.

“Announced” SKUs are not yet available. Please refer to the Launch Date for market availability.
