    Customized RF Coaxial Cable
(Cable, Adapter , Connector provider)


  • For example

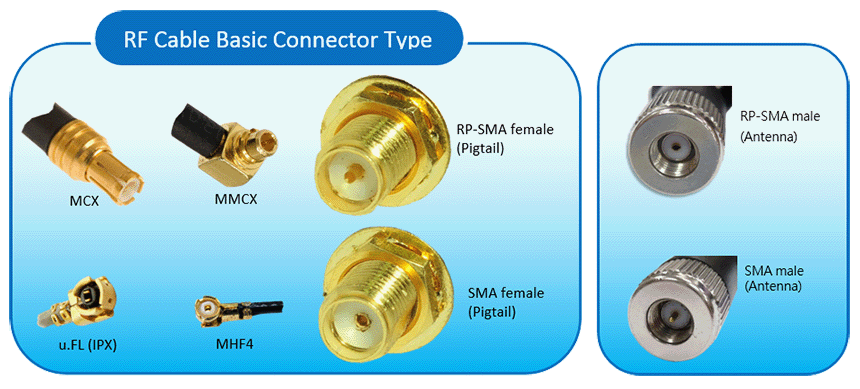

  • Basic Cable / Connector Type
  • RF Cable disassembly
  • RF Connector
  • Cable Components
  • Application

Part-Number RPSMA female-IPX plug-8CM-1.13 cable     Dimension
RPSMA-IPX-8CM

RPSMA-1.13-IPX-8CM

RF21008A
RF-Cable Adapter part-number and product name example:
RF21008A    RPSMA female-IPX plug-8CM-1.13 cable
RF11150D    SMA female-IPX plug-150CM-RG178 cable-Water-Proof
RF33150C    SMA-Extension-150CM-RG174 cable-Magnet-Seat
RF28200A-FC  RPSMA female-MMCX plug-200CM-1.13 cable with Ferrite-Core
RFXX008B-YY  OEM project. –XX (Conn Code), –YY (OEM Code)

   Part-Number descriptions

Type Code  /   Connector(L)

»»

»»

Type Code  /   Connector(R)

»»

»»

Length
(cm)

»»

»»

Type Code  /   Material
  1    SMA female (Pigtail)

  2    RPSMA female (Pigtail)

  3    SMA male

  4    RPSMA male

  5    IPX (u.FL) plug

  6    MHF4 plug

  7    MCX plug

  8    MMCX plug

  9    CRC9 plug

  A    MHF5 plug

  D    IPX female

  F    Free

  1    IPX (u.FL) plug

  2    MHF4 plug

  3    SMA female / Magnet-Seat

  4    RPSMA female / Magnet-Seat

  5    SMA female (Pigtail)

  6    RPSMA female (Pigtail)

  7    MCX plug

  8    MMCX plug

  9    CRC9 plug

  A    MHF5 plug

  D    IPX female

  F    Free

005
008
012
015
020
050
100
300
Other
  A    1.13 cable

  B    0.81 cable

  C    RG174 cable

  D    RG178 cable

  -FC  Ferrite-Core

-WP  Water-Proof
-XX    Other (OEM)

 [Manufactory]
SMA Cable assembly, RF coaxial pigtail cable IPX / U.FL to RP-SMA female Pigtail, 50 Ohm,1.13 cable
If you are interested in RF coaxial cables, please Contact Us anytime.
Please choose spectfications for the customized products you need , we'll get back to you soon for your request within 24 hours.

  • Custom cables for quantities up to 50 have a lead time within 2 weeks.
  • Custom Cables ordered are non-refundable
  • A sample price for $3, Shipping and handling for $30
  • RoHS certification
     Notice:
    RF cable compliance with Rohs Exemption 6:  "Lead as an alloying element in steel containing up to 0,35% lead by weight, aluminium containing up to 0,4% lead by weight and as a copper alloy containing up to 4% lead by weight"

 RF cable selection guide




    RF Cable Basic Cable Type
Type Conductor Insula-tion Braid I Braid II Jacket O.D UL STYLE Impe-dance Conne-ctor Frequ-ency
RG-178 SCCS FEP SP/TD / FEP 1.8mm AWM1979 50Ω MMCX 6GHZ
RG-174 PE SP/TD / PVC 2.8mm AWM1979 50Ω SMA 6GHZ
1.13 SCCS FEP SP/TD / FEP 1.13mm AWM1979 50Ω U.fl/IPX 6GHZ
0.81 FEP SP/TD / FEP 0.81mm AWM1979 50Ω MHF4 6GHZ


RF Connector

BNC-J5 BNC-JC-1.5 BNC-JC-3 BNC-KC1.5
MCX-JC316 MCX-JWB2 MCX-JWC1.5 MCX-KC1.5
MMCX-JC-1.5 MMCX-JWC1.5 MMCX-JWC-3
N-J3Y N-JC-3 N-KC-3 RPTNC-JC-3 RPTNC-KC-3
SMA-C-KY1.5 SMA-C-KY3 SMA-JB2 SMA-JB3 SMA-JC1.5
SMA-JC-3 SMA-JWB2 SMA-JWB3 SMA-JWC1.5 SMA-JWC-3
SMA-KYB2 SMA-KYB3 SMB-JC-1.5 SMB-KC316
SU6-JC-3 TNC-J3Y TNC-KYC1.5 MHF4 U.fl_IPX

    Cable Components

1. The connector sma his head on his head even sma cable RG58U
2. The connector sma his head even the sma head cable RG174
3. The connector sma his head even it the first mmcx cable RG174
4. The connector his head even mmcx the sma cable RG178
5. The connector sma his head his head even ipex cable RG316
6. The connector sma his head without welds cable RG316
7. The connector sma his head on his head even ipex cable 1.13
8. The connector SMA his head on his head even MHF4 cable 0.81

  • MMCX / MCX
  • RPSMA/SMA
  • U.FL/IPX/IPEX/MHF,MHF4

RF Cable Application
(SMA, RPSMA, MCX, MMCX, IPX, MHF4)

MMCX

微小型射頻同軸連接器 (MINIATURE MICROAX RF COAXIAL CONNECTORS)
MMCX系列射頻連接器是一種比MCX更小的微型產品。它體積小、重量輕、連接方便可靠。廣泛用於對系統體積、重量都有要求的小型通訊、網路設備中連接射頻同軸電纜。

The series of MMCX radio frequency joining device is a kind of microminiaturized product smaller than MCX. It is small, light, joins convenient and reliable.
Use for to system volume, serious to have small-scale communication, Network equipment that require join the coaxial cable of the radio frequency extensively.

MCX

微型射頻同軸連接器 (MICROAX RF COAXIAL CONNECTORS)
MCX 系列射頻連接器是一種小型推入自鎖式連接器,它具有體積小、重量輕、結構緊湊的特點。可用於對體積、重量及安裝方式有要求的小型電子設備或網路系統。

The series of MCX radio frequency joining device is that one kind is since pushed the lock type joining device small-scaly, it has a small, light, characteristic with compact structure. Small- scale electronic equipment or network system that can be used for requiring to volume, weight and installation way.

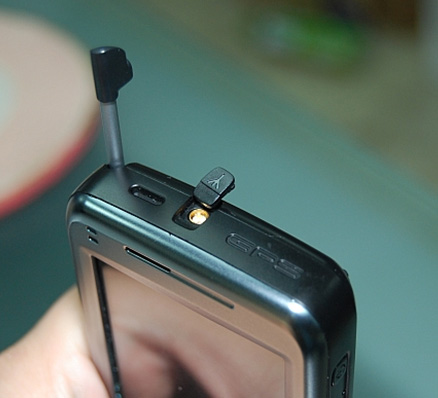

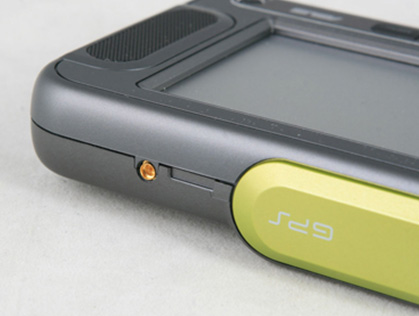

MMCX connector in Mobile GPS, Smart Phone




U.FL/IPX/IPEX/MHF,MHF4

U.FL/IPX/IPEX/MHF,MHF4

U.FL/IPX/IPEX/MHF is a miniature RF connector for high-frequency signals up to 6 GHzfor mini PCI Express Module

MHF4 is a kind of microminiaturized product smaller than MHF. For M.2 (NGFF) Module





RF Cable Application

RPSMA / SMA

反極接頭一般用在2.4G/5.0G無線網卡、無線路由器、橋接器AP和WiFi天線上;
標準接頭用在除以上以外的其它領域,2G/3G/4G無線模組、GPS對講機、GSM設備、CDMA,Lte等。
SMA系列產品是一種應用廣泛的小型螺紋連接的同軸連接器,它具有頻帶寬、性能優、高可靠、壽命長的特點。適用於微波設備和數位通信系統的射頻回路中連接射頻電纜或微型線。

Series of SMA products one application extensive small-scale coaxial person who join that whorl join, it has a reliable characteristic with long life-span that the width, performance are excellent, high frequently.

Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently in the loop frequently.
