首頁 > 產品資訊 > USB 3.1 > U31MR

   U31MR
雙 mSATA SSD轉USB3.1 Type C含RAID功能硬碟盒




Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Compatibility List Taiwan 1 Taiwan 2 China
Test Report Taiwan 1 Taiwan 2 China
RAID SETTING SOP Taiwan 1 Taiwan 2 China
網路商店


    概要

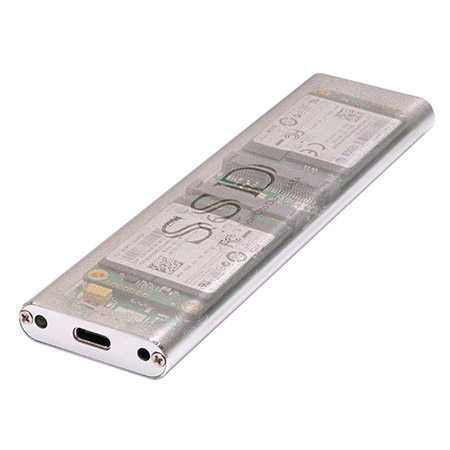

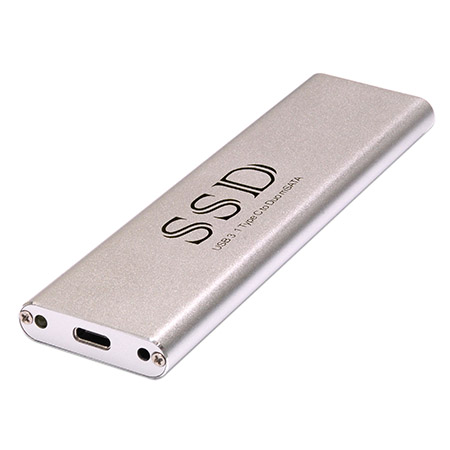

U31MR is 雙mSATA SSD轉 USB3.1 Type C的轉接隨身碟，是設計給 SATA-IO mSATA SSD 轉接成行動硬碟的解決方案。

這個轉接盒可接兩個 mSATA SSD通過 USB 3.1 type C port接到您的筆記型電腦或桌上型電腦，U31MR具有RAID 功能

        產品功能

  • Allows user to use standard SATA3 mSATA SSD to USB type C port in the Desktop or Laptop
  • Compatible with Full/Half card dimension size of MINI SATA SSD Module
  • Active LED
  • Support Hi-Speed USB 3.1 (10Gbps), SATA3 (6Gbps) mass storage interface.
  • RAID mode :
    JBOD (Port Multiplier),

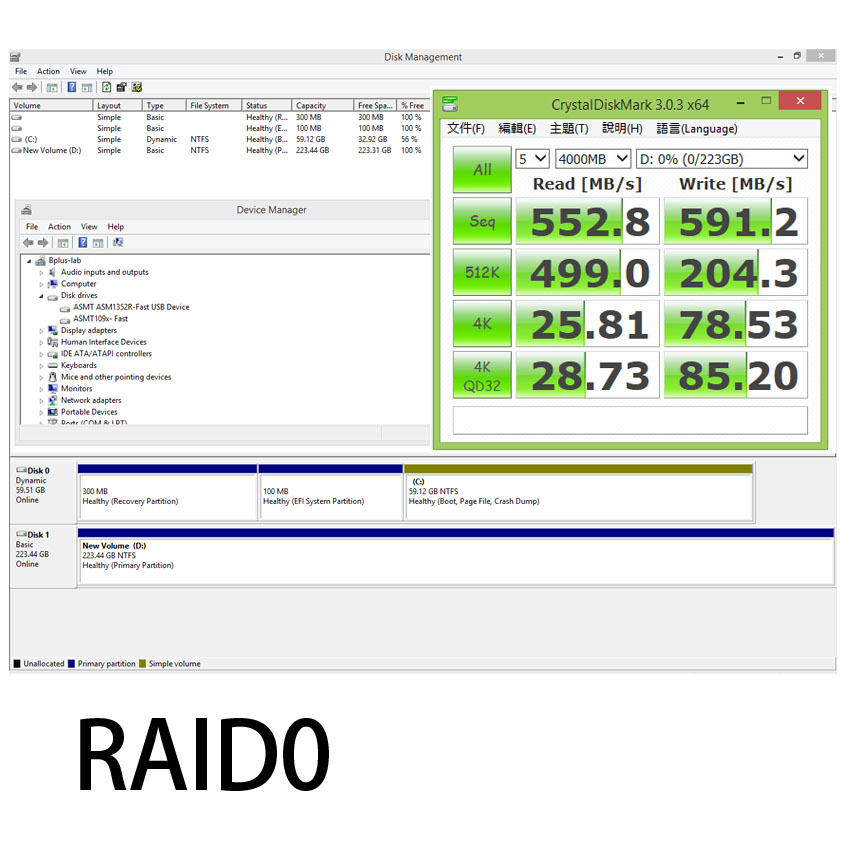

    RAID0 (Striping/Fast),
    RAID1(Mirror/Safe),
    Span (Big)



 SW1

GUI

JBOD

RAID1

RAID0

Span

PIN 1

OFF

ON

ON

ON

ON

PIN 2

X

OFF

OFF

ON

ON

PIN 3

X

OFF

ON

OFF

ON

        工作溫度

  • 0 ~ 70℃

        尺寸 & 重量

  • 143mm X37.79mm X 8.95mm
  • 52.8g

        系統需求

  • Windows XP, Vista, Windows 7, Windows 8, Window 10, Server 2008, Windows 8,Linux, Mac iOS



網路商店

U31MR
售價: USD 180.

U31MR
(雙 mSATA SSD轉USB3.1 Type C含RAID功能硬碟盒) x1

Y24-U01-050
(USB 3.1 C-type to USB3.0 A-type Cable 50cm) x1

 Y24-U02-050

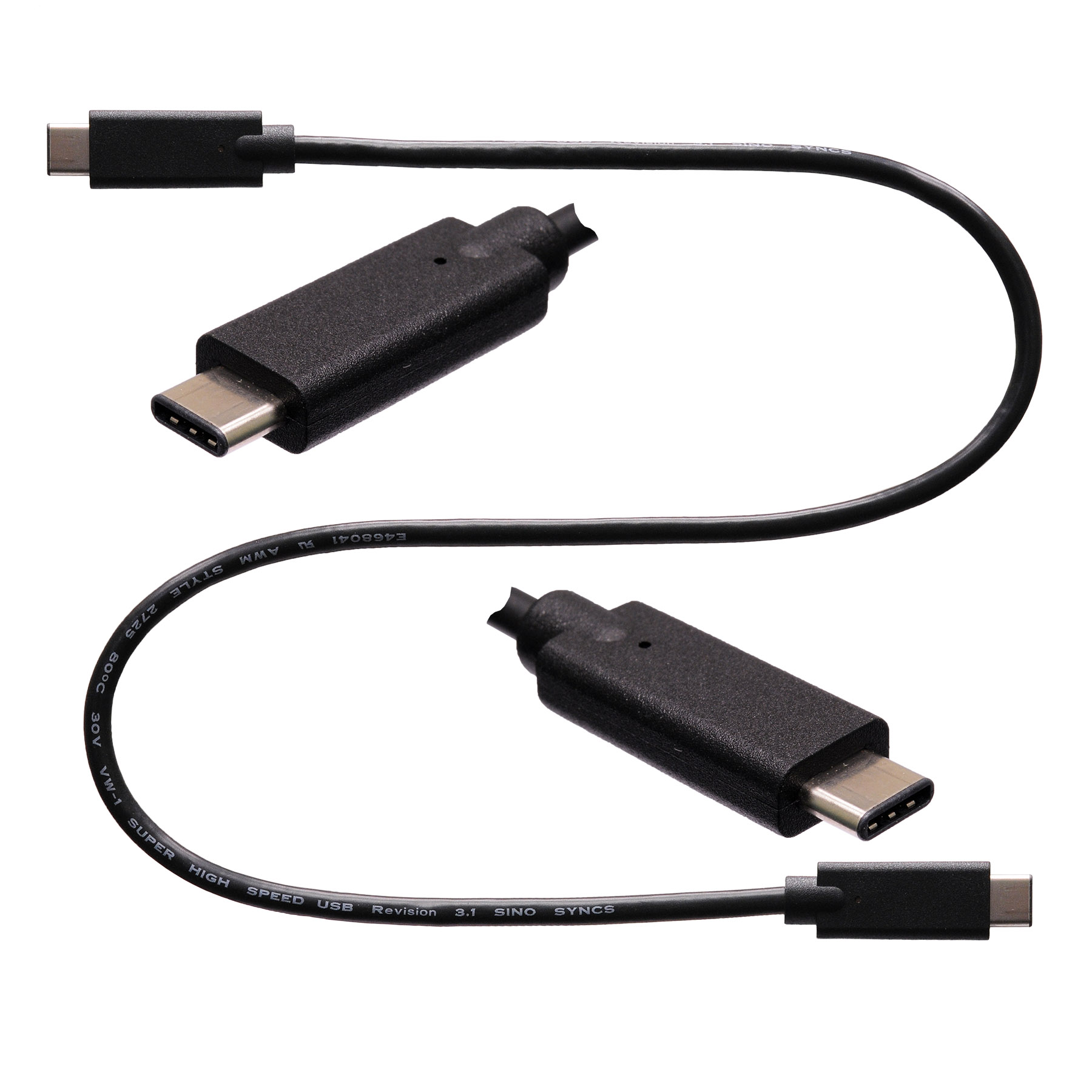

(USB 3.1 C-type to USB3.1 C-type Cable 50cm) x1
 Y05-U17-060
(USB A公頭直流電源線) x1

散熱片 x1

Flat-Head Screw x4
