首頁 > 產品資訊 > M.2 (NGFF)介面 > MP8605A

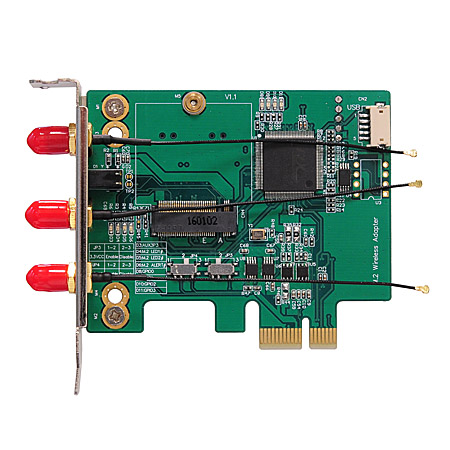

    MP8605A
(M.2 Key A無線網卡轉PCI-E轉接板)







Brief Taiwan 1 Taiwan 2 China
Buy It Now


    產品概要


MP8605A 是專門為三頻無線高速網卡而設計,如果安裝上英特爾®三頻無線-AC 17265 無線網卡,可提供高速802.11ac,及 60GHz WiGig (802.11ad) 藍芽,應用在桌上型電腦的PCI-E 1x 的插槽使用。
大幅重塑你在家裡、辦公室的無線連結的便利體驗。

關於如英特爾®三頻無線-AC 18260 網卡,其Wireless-AC, Wireless-AD是透過PCIe傳輸,而藍芽是用USB接口傳輸。


      Specification


  • PCB Dimension: 80 x 70 x 10 mm (L x W x H)
  • Weight: 80g
  • Operating temperature: 0º to +70° C
  • M.2 Key A or A+E Card to PCI Express adapter
  • Supports system bus interface: PCIe & USB2.0.
  • Support PCIe M.2 Card 2230 / 3030Key A / A+E:
    IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac, 802.11ad
  • LED: STATUS, POWER, and ALERT#
  • MHF4 to SMA / RP-SMA pigtail Wireless RF cable adapter
  • MP8605A: Transparent to operating systems and does not require any software drivers
  • Support M.2 Cards List
    Intel® 17265NGW, 18265NGW
    Qualcomm® Atheros W0096-AC+AD, Wilocity Wil6200



      注意事項


  • MP8605A是一個轉接板,它不須軟體驅動。,
  • 請依據您的M.2 Card安裝所需的驅動軟體,然後再安裝MP8605A轉板。

網路商店


MP8605A
售價: USD 225.

MP8605A
(M.2 Key A無線網卡轉PCI-E轉接板) x1
RF22008B x3
Y05-U09-060
(USB dupont 5PIN to 5PIN cable) x1
JP0593
(標準高度PCIe 檔板) x1

塞子x2
G0030
(平頭螺絲 M2x1.9 Screw) x1

其他相關商品


intel® 17265NGW
Antenna-M 10041R
RF6A008B
RFAA008B
